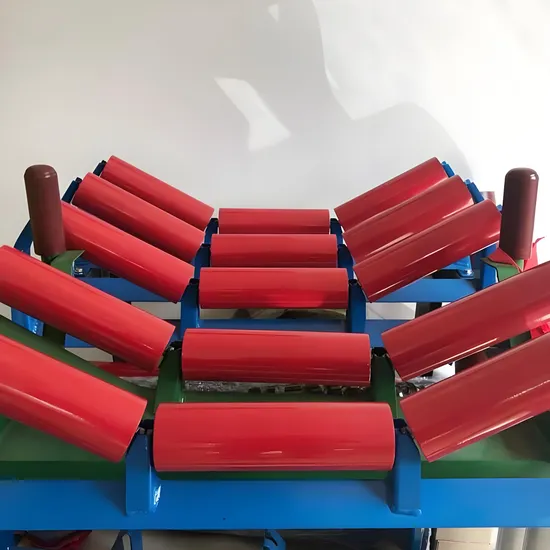

Nylon Polyurethane Roller Mechanical Rollers Tapered Conveyor Rollers Rollers for Conveyor Conveyor Idler Wheel Conveyor Roller Conveyor Roller

• Overview
• Product Description
• Product Parameters
• Certifications
• PRODUCTION PROCESS
• Company Profile
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	89
Structure	Ordinary Roller
Bearing Type	Single Sealed Bearing
Type	Grooved Conveyor Idler
Warranty	1 Year
Customized	Customized
Certification	ISO9001:2015, CE
Color	as Required
Dia	60-219mm
Testing	Waterproof, Dustproof, etc
Life Time	More Than 50000 Hours
Transport Package	Wooden Crate or Pallet
Specification	89mm*305mm*335mm
Trademark	dezheng
Origin	Hebei
HS Code	8431390000
Production Capacity	5000 Pieces/7 Days

Packaging & Delivery

Package Size35.00cm * 10.00cm * 10.00cm Package Gross Weight2.600kg

Product Description

The life time: More than 30000 hours
Samples for testing are available.
The more relaxed payment terms

Detailed conveyor roller idler feature:
1. Roller idlers Dia 50mm-219mm, length 190-3400mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
5. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
6. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
8. Welding: Mixed gas shielded arc welding end
9. Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Besides we can manufacture the rollers and idlers according to the buyers' requirements

1.Q: Your bearing type and brand usually use?
A: Large clearance C3 ZZ type deep ball bearing with LYC, S KF, F AG, NSK, etc. According to customer's requirements.

2.Q: How is your Payment Term?
A: T/T or L/C. Another payment term we can also discuss.

3.Q: Can you customize it?
A: We support customization according to your request.

4.Q: What's the MOQ?
A: 50 piece.

5.Q: What's the production capacity of your idler and belt conveyor?
A: Idlers 200,000 pcs/year.

6.Q: What's your roller's lifespan?
A: Our rollers have a long lifespan with good performance and usually make sure 30000 to 50000 hours under the normal site and operation.

Product Description Product Parameters

Standard External Diameter		Standard Inner Diameter	Length scope ( mm)	Bearings Type (Min~Max)
mm	In	mm
89	3 1/3	60/50	170-3400	6104 6204
102	4	76	170-3400	6104 6204 6205
108	4 1/4	89/76/60	170-3400	6204 6205 6305
114	4 1/2	89/76	170-3400	6204 6205 6305
127	5	89	170-3400	6204 6205 6306
133	5 1/4	89/70/63.5	170-3400	6204 6205 6306
140	5 1/2	89	170-3400	6204 6205 6305 6306
152	6	108/76	170-3400	6204 6205 6206 6305 6306
159	6 1/4	108	170-3400	6204 6205 6206 6305 6306 6307
194	7 5/8	159/133	170-3400	6205 6206 6207 6305 6306 6307 6308
